CNC Joint Collars

First, watch this video to see how the cueball collar bodies are defined, bored & threaded.  The pictures below are a follow-up showing how the collars are finished.  Then, watch this video to see how a Juma joint collar is machined in real time.  Instead of doing 3 at a time like with the cueball, I use a vertical 5C collet holder with a positive stop to hold the blanks.  I machine all the bores first, then change the cutter & thread them all.

The CNC'd cueball is band sawed to remove the individual collars for further machining.

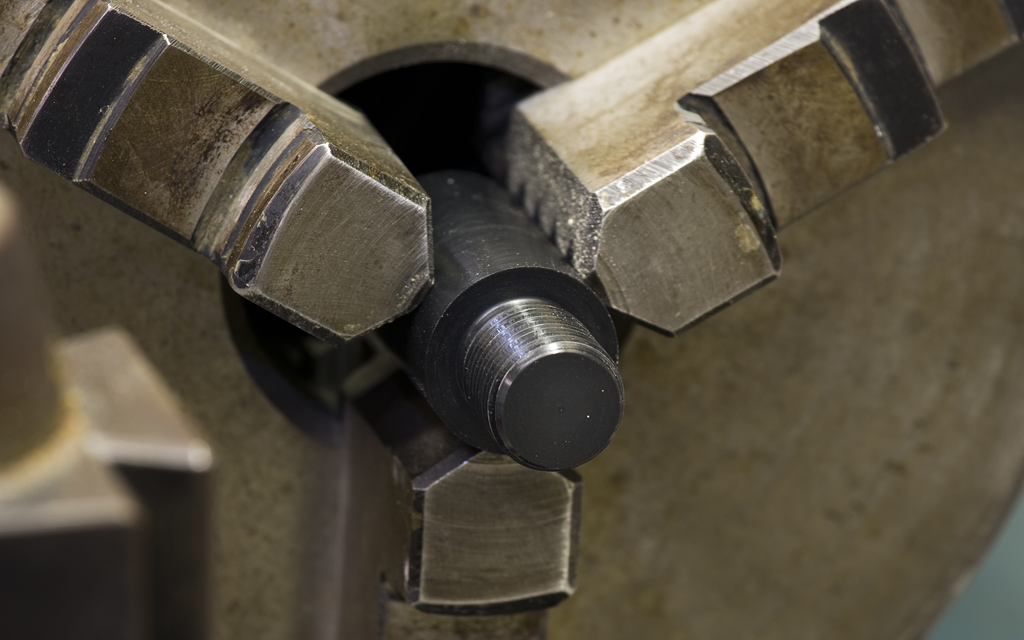

This simple Delrin arbor is machined with 5/8-18 x 11/16 threads.  Each of the collars will be screwed on & get the OD machined to .875" diameter.

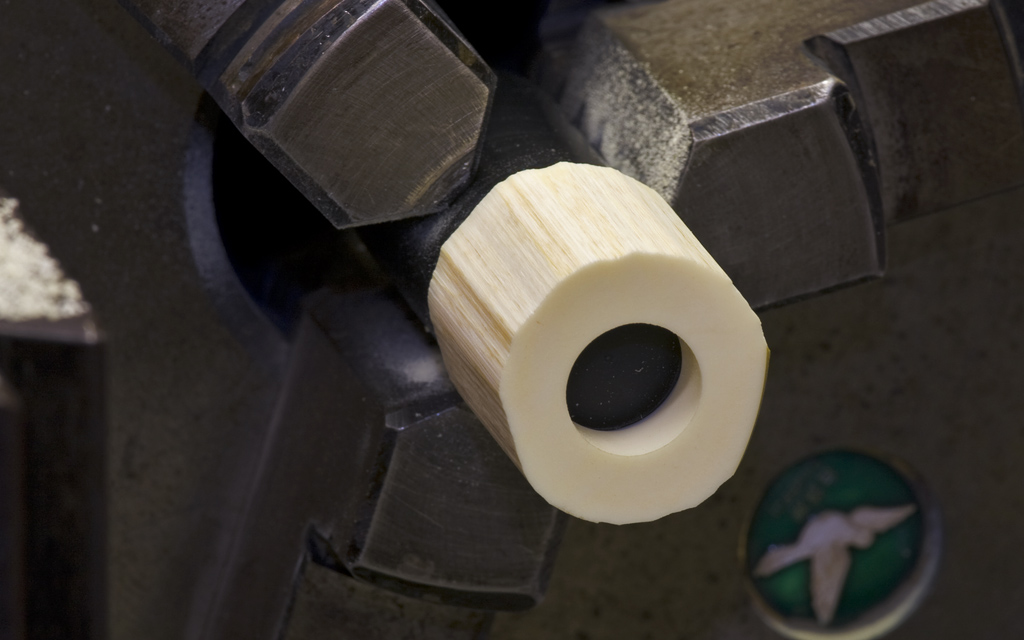

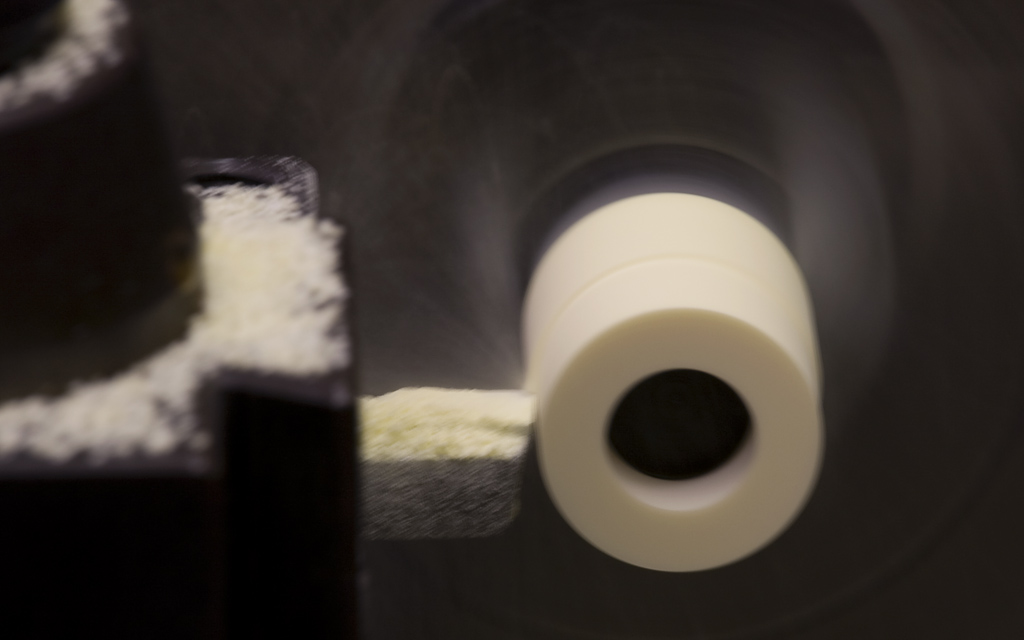

One of the collars is shown installed & being machined in these two pictures.

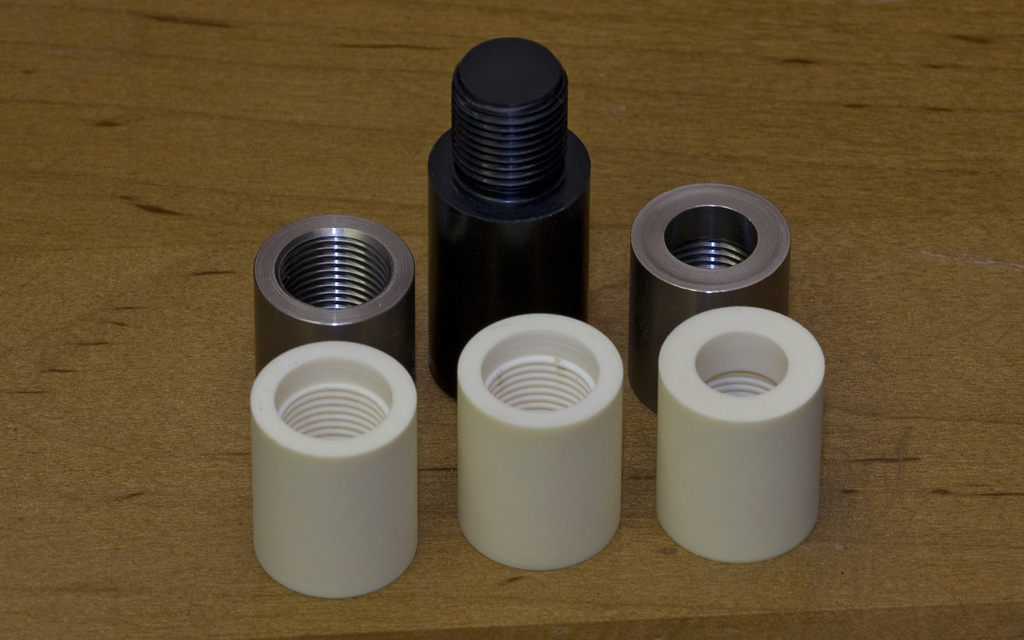

Here is a comparison of the finish machined cueball joint collars and commercially available SS joint collars.  The only difference between them is that I machine a locating diameter at each end of the collars vs. the single .500" diameter at the joint face of the SS collars.  The Delrin arbor is also shown.

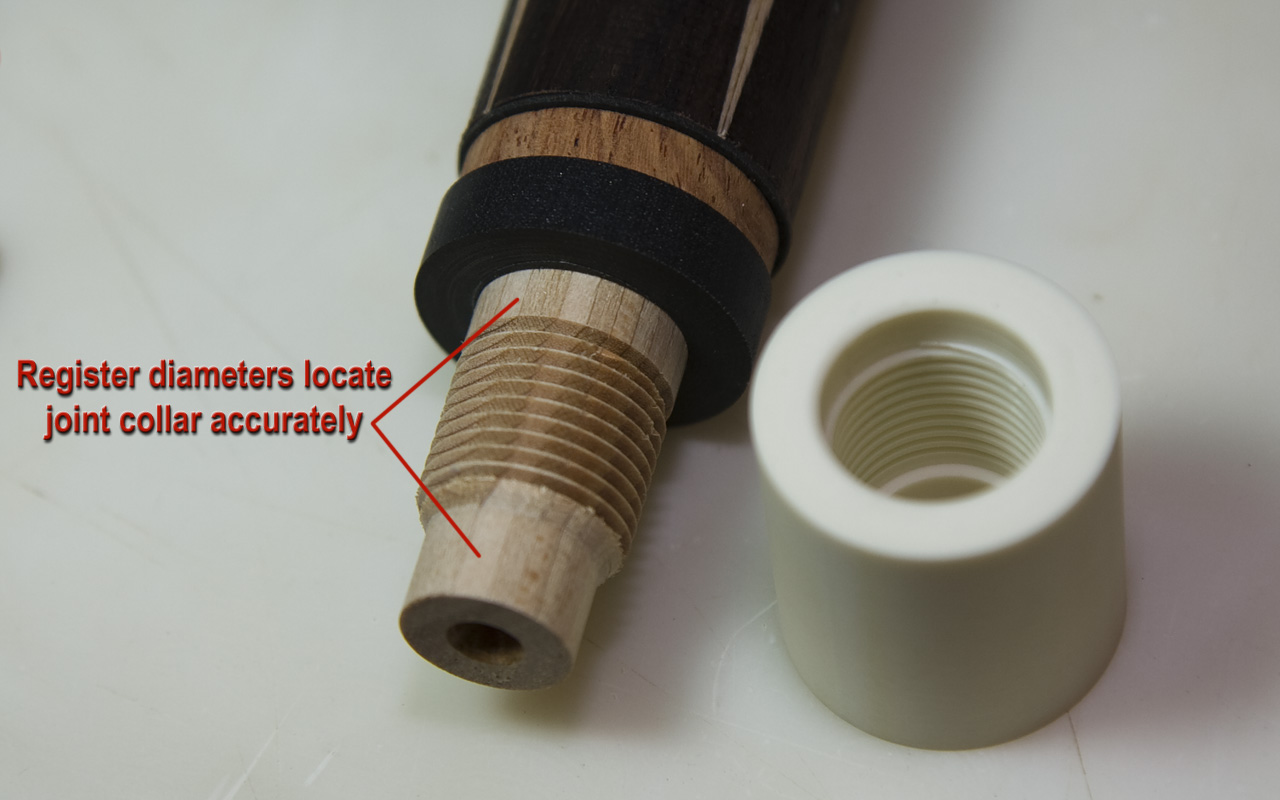

Finally, a forearm with trim rings installed, ready for the joint collar.   The register diameters show how the accurate location of a joint collar is achieved.  FWIW, this collar happens to be made of Juma.

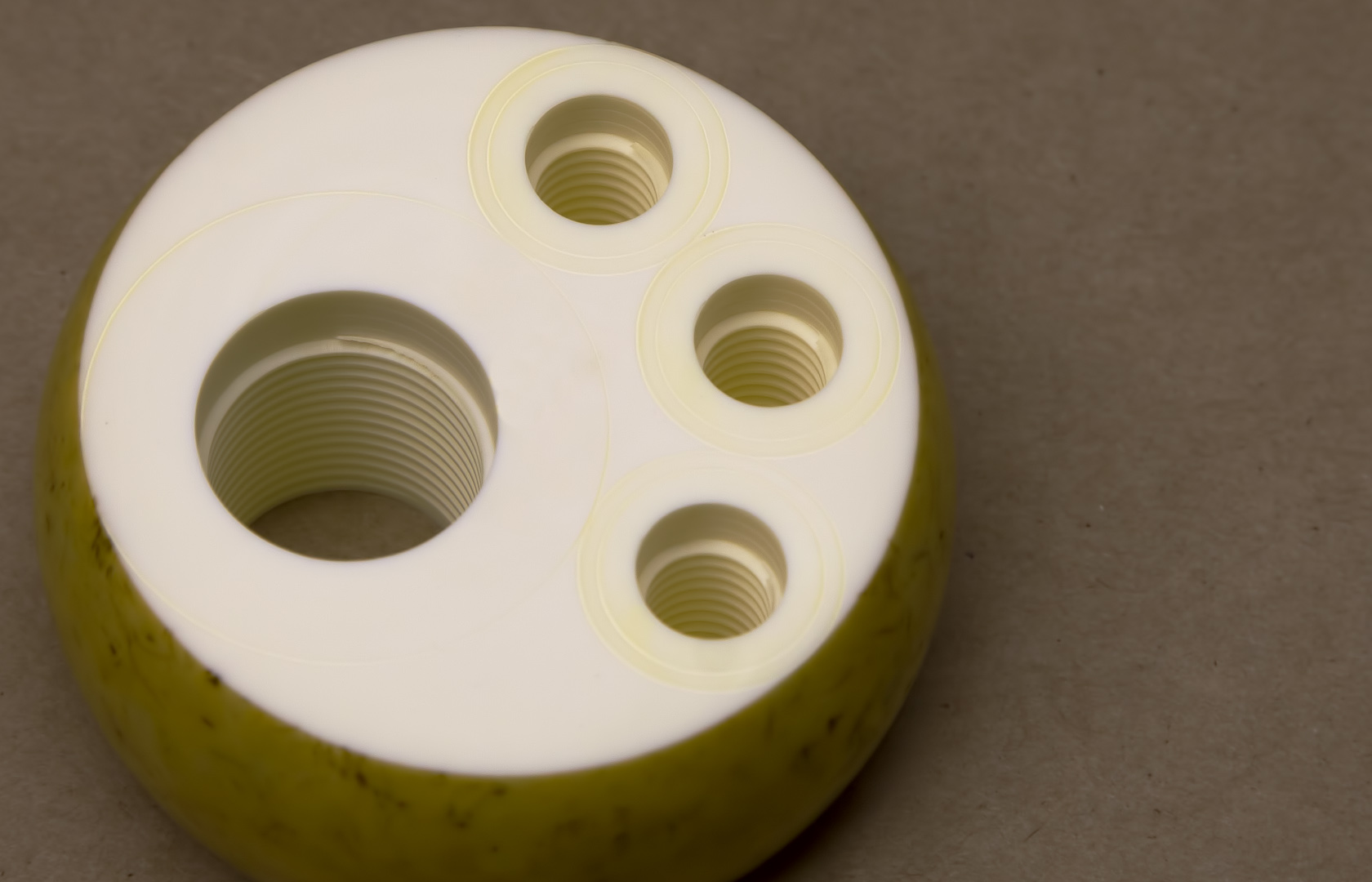

On a related issue, a customer wanted a cueball buttcap.  I realized I could get the buttcap & still have room for 3 ferrules.  Here is the cueball with everything threaded & ready to be sawn out.
